Non Destructive Testing // Equipment & Accessories

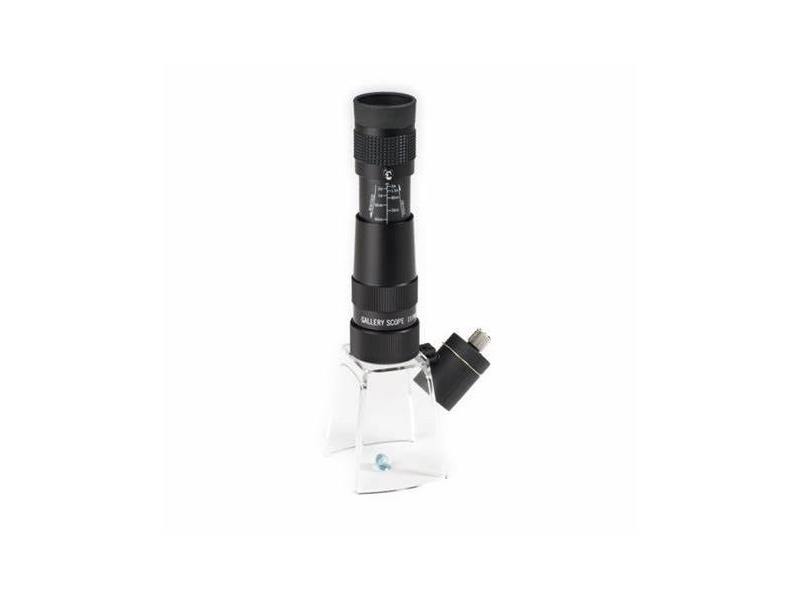

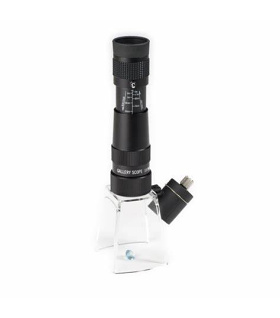

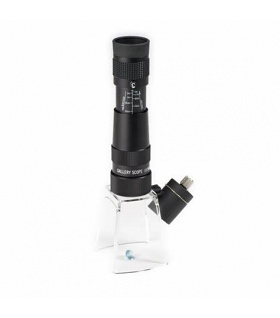

25X Portable Measuring Microscope
8 x 20 Scope
  • Compact Design
  • Reticle Scale Included
  • Portable and compact

Description

The 25x Microscope is a portable and compact direct measuring field microscope. Perfect and convenient for travelling from the desk to the job site for critical inspection and measurement. Each scope includes a focus ring for crisp, clear images. Using the reticle focus adjustment, the 1/20mm scale reticle can be brought into sharp focus when superimposed on the internal image. A clear acrylic base allows the instrument to rest directly on a flat object while passing ambient light

Two cutaways (180° apart) in the clear base allow fine instruments to touch the object under inspection. The base can be removed to accommodate irregular objects. The base and bottom macro lens can be removed for added flexibility as an erect image 8X telescope for long-distance requirements. Padded storage case included. Reticle: 2.5-0-2.5mm, 0.05mm incr. Note that the focus ring is on the removable macro lens.

Specifications


Diameter (mm): 27
Field of View (mm): Micro: 9.0
 Magnification:  Micro: 25X, Scope: 8X
 Weight:  Micro: 90 with Stand, Scope: 60
 Working Distance (mm):  Micro: 69, Scope: 6000 -∞
 Field of View (°):  Scope: 6.5
 Note:  Micro Length: 180 with Stand Scope Length: 90

Ordering Info

CodePackaging
38-837 Each
