Non Destructive Testing // Magnetic Particles

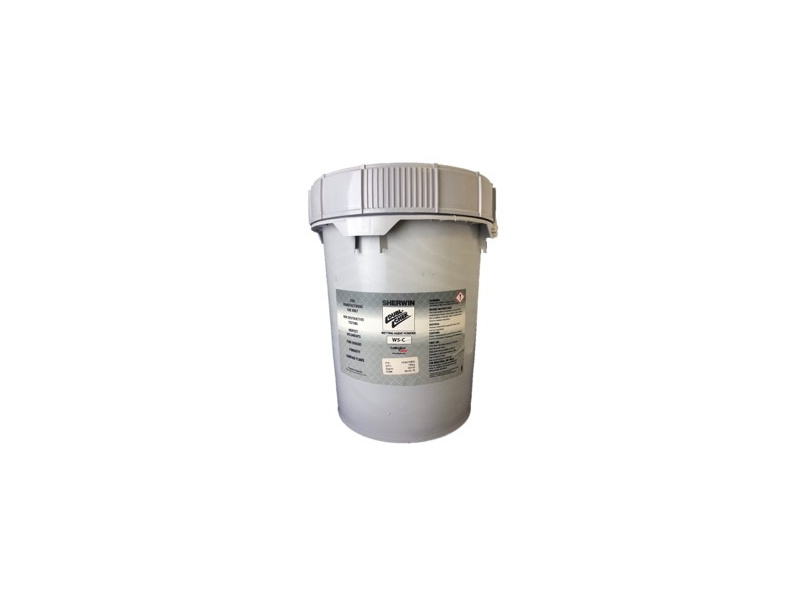

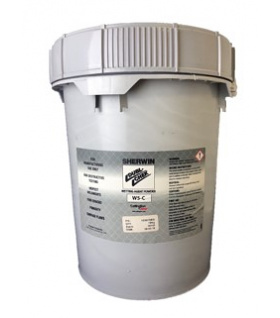

DUBL-CHEK W5-C
Water Conditioner for Magnetic Particle Water Dispersion
  • Contains corrosion inhibitors
  • Allows water to be used for magnetic particle inspection
  • Water based suspension is non-flammable

Description

DUBL-CHEK W5-C is a water conditioner used in magnetic particle inspection. W5-C is added to water in order to disperse the particles, wet the test surface and inhibit corrosion.

Physical Properties

Particle Colour: White
Solubility: W5-C is completely soluble in water
Temperature limit: 4°C to 50°C

Directions

The water must be conditioned before adding the GW-1 or Black Oxide No.1 in order to disperse the particles, wet the test surface and inhibit corrosion. W5-C is the recommended conditioner and is added at 10g/Lt.

Ordering Info

CodePackaging
1538/5LBS 2.2kgs
1538/10LBS 4.5kgs (1.3 gallons)
1538/25LBS 11.3kgs (2.9 gallons)
