Metal Treatment Products // Spatter Protection

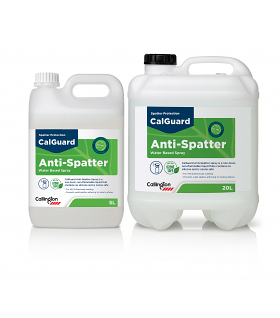

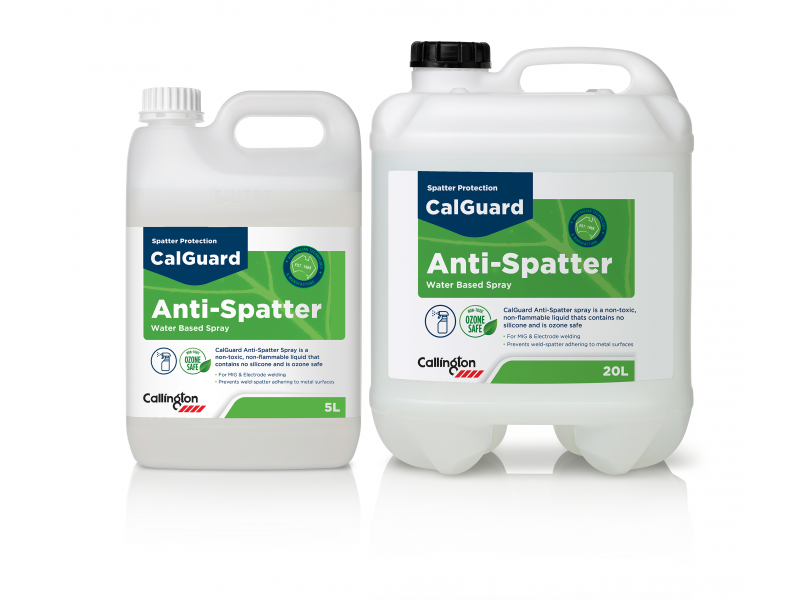

CalGuard Anti-Spatter Spray
Water-Based CalGuard Anti-Spatter Spray
  • Non-toxic & water based, making it user safe
  • Ozone safe, making it environmentally friendly
  • Biodegradable, easy waste disposal
  • Non-flammable
  • Paintable - no silicone
  • For MIG & Electrode welding


CalGuard Anti-Spatter Spray is a water based, paintable, cost-effective, and non-flammable agent for the prevention of weld-spatter adhering to metal surfaces during the welding process. It eliminates spatter build up which results in poor gas flow causing pitting, porosity, and costly rework.

Direction for use

Welding Torch: Spray CalGuard Anti-Spatter before welding in a thin and uniform film onto the areas to be protected. Hold the spray can or applicator approximately 30cm from the surface to be protected. Also use the spray to protect the interior and exterior of nozzles, the end and outer surface of contact tips, and all other potential areas which are subject to weld spatter. It may be advisable to spray diffusers and the base of the nozzle support as well.

Base Metals - Jigs - Clamps - Bench Tops: Spray CalGuard Anti-Spatter spray can or applicator approximately 30cm from surface to be protected. Spray a thin uniform coating. As with any form of anti-spatter do not over apply solution as excessive solution application may be detrimental to the weld quality. Note: Prior to painting wipe with the surface with a suitable degreasing agent.


A handheld spray applicator can be used for welding torch components and base metal areas. For base metal, larger areas, wiping and mopping may be used. To Remove CalGuard Anti-Spatter after use, clean the surface with a suitable detergent or solvent cleaner.

Ordering info

1400/28 750ml 12
1400/42 5 litres 4
1400/51 20 litres Each
1400/64 200 litres Each
