Non Destructive Testing // Magnetic Particles
- High contrast provides easier visibility of fault indications.
- Fast drying allows quick processing time.
- Low residual odour for a more operator-friendly environment.
- Greater convenience and portability in aerosol form.
- Solvent removable.
Description

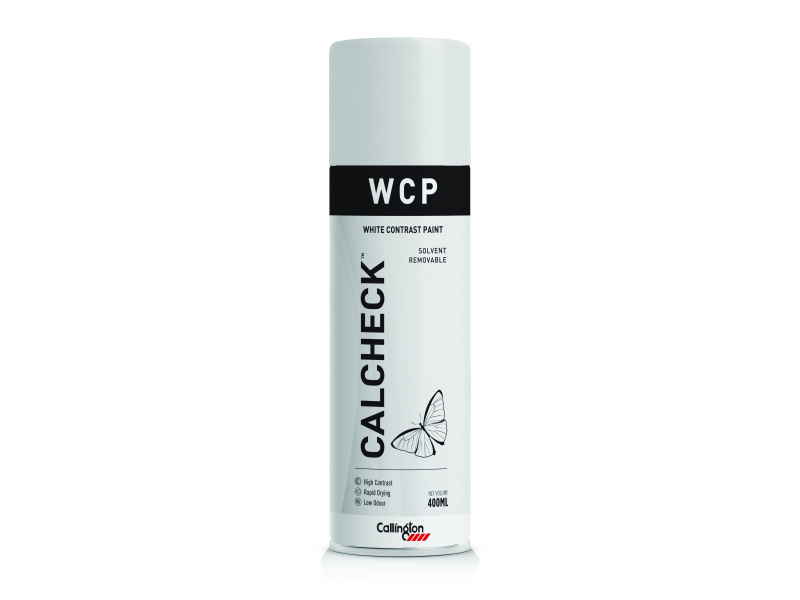

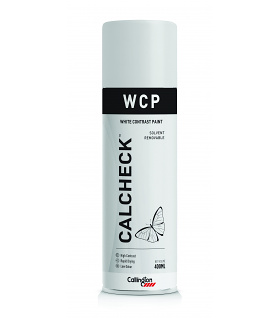

CalCheck™ WCP is a specially formulated, fast drying, low odor white paint that provides a high contrast background for interpreting magnetic particle results. CalCheck WCP enhances the visibility of indications under visible light conditions when the background material has a similar colour to the particles. When dry, CalCheck WCP is resistant to wet suspension fluids, but is easily removed with CalCheck R-2F Cleaner/Remover.
Specifications Compliance
• ASME Boiler and Pressure Vessel Code Section V
• ASTM E3024
• ASTM E709
• ISO 9934-2
Physical Properties
Colour: | White |
Odour: | Low residual |
Temperature limit: | 4°C to 50°C (39°F to 122°F) |
Directions
Note:These instructions describe the basic process, but they may need to be amended by the user to comply with applicable specifications and/or inspection criteria provided by the contracting agency.
1. Clean the test surface and allow it to dry.
2. The longer WCP is stirred or agitated the more uniform the spray.
3. Apply a thin coat of WCP contrast paint to the inspection area sprayed from approximately 150mm from the surface.
4. Wait approximately 20 seconds, depending on ambient temperature, for the paint to dry.
5. Magnetise the area to be inspected.
6. Ensure continuous agitation of the suspension fluid. If using an aerosol, shake vigorously before and during inspection.
7. Apply the suspension to the test part.
8. Allow the excess oil/water to run off the inspection area.
9. Inspect the surface under visible light.
10. Collections of particles will reveal discontinuities at the leakage fields.
11. Clean and repeat the process, changing the orientation of the magnetising direction.
Ordering Info
Code | Packaging |
---|---|
1568/400 | Aerosol |
