Metalworking Fluids // Metal Cutting Fluids
- Excellent surface finish and extended tool life
- Suitable for a wide range of materials and machining operations
- Exceptional product stability providing longer coolant life
- Excellent corrosion protection and non-staining
- Non-aggressive to paints and compatible with seals commonly used in machines
Description
Callington XP 2000 is a high-performance, chlorine free, extreme pressure semi synthetic metal working coolant. It has been formulated for use in soft water as well as hard waters and exhibits extremely low foam and excellent stability under a wide range of conditions.
Application
Callington XP 2000 is designed for use in most metalworking applications and is equally suitable for use in large centralised coolant systems and for small individual coolant sumps. It can be used across a wide range of machining applications, including milling, drilling, tapping, reaming, broaching, high-speed grinding, and creep feed grinding.
Callington XP 2000 is suitable for use with the latest technology high-speed machining centres and flexible machining systems, where a range of machining operations are performed on a variety of different metals. It provides excellent machining performance on steel, cast iron, copper alloys, and on difficult alloys such as stainless steel and nickel alloys, titanium, and high silicon aluminium. It is low foaming and ideal for high pressure, high volume coolant flow applications, and maximises the benefits of through tool coolant delivery systems.
Recommended dilutions
Material | Cast Iron | Low Tensile Steel | Stainless Steel | Non Ferrous | Low Alloy Aluminium | High Alloy Aluminium | Titanium |
---|---|---|---|---|---|---|---|
Operation | 3.5% | 3.5% | 3.5% | 3.5% | 3.5% | 3.5% | 3.5% |
Grinding | |||||||
Boring | 3.5% | 4.0% | 5.0% | 5.0% | 5.0% | 7.0% | 6% |
Drilling | |||||||
Milling | |||||||
Sawing | 4.0% | 7.0% | 7.0% | 8.0% | 6.0% | 7.0% | 7% |
Tapping | |||||||
Threading | |||||||
Turning | |||||||
Broaching | 8% | 7% | 12% | 12% | 7.0% | 10.0% | 10% |
Ordering Info
Code | Packaging |
---|---|
7470/51 | 5 litres |
7470/64 | 20 litres |

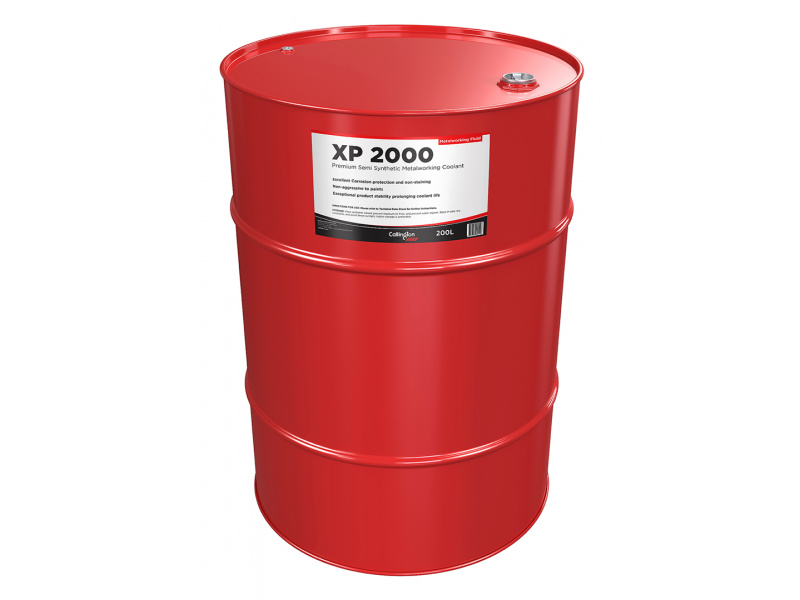

7470/1000 | 200 litres |
